| Mã sản phẩm | NK44W0H-1T(E) |
|---|---|
| Camera | |
| Camera Case Type | Bullet |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Protection Level | IP66 |
| Material | Front cover: plastic, camera body: metal |
| Wi-Fi Support | Yes |
| Camera/Lens | |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114° |
| Lens Mount | M12 |
| Camera/IR | |
| IR Range | Up to 30 m |
| Camera/Compression Standard | |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Camera/Image | |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) |
| 60Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) | |
| Sub-stream | 50Hz: 20 fps (640 × 360) |
| 60Hz: 20 fps (640 × 360) | |
| Image Setting | Mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto/Scheduled/Day/Night |
| Camera/Network | |
| Alarm Trigger | Motion detection, exception |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour |
| General Function | Anti-flicker, heartbeat, password reset via e-mail |
| Client | iVMS-4200, Hik-Connect |
| Camera/Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio I/O | 1 Built-in mic |
| Reset Button | Yes |
| Camera/General | |
| Power Supply | 12 VDC ± 25%, 0.5 A, Ø5.5 mm coaxial plug power |
| Consumption | ≤ 6 W |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 95% or less (non-condensing) |
| Dimension (W × D × H) | 175.6 × 73.0 × 89.1 mm (6.9" × 2.9" × 3.5") |
| Weight | 330 g (0.7 lb.) |
| NVR/Video and Audio | |
| IP Video Input | 4-ch |
| Incoming/Outgoing Bandwidth | 50 Mbps/40 Mbps |
| HDMI/VGA Output | 1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI/VGA simultaneous output | |
| Audio Output | 1-ch, RCA (linear, 1 KΩ) |
| NVR/Decoding | |
| Video Resolution | 4 MP/3 MP/1080p/1.3 MP/720p |
| Synchronous Playback | 4-ch |
| Capability | 4-ch@4 MP (12 fps)/4-ch@1080p (25 fps) |
| NVR/Network | |
| Network Interface | 1, RJ45 10/100M Ethernet interface |
| Network Protocol | IPv6, UPnP™, NTP, SADP, DHCP |
| Remote Connection | 16 |
| NVR/Wi-Fi | |
| Frequency Band | 2.4 GHz |
| Antenna Structure | 2 × 2MIMO |
| Transmission Speed | 144 Mbps |
| Transmission Standard | IEEE 802.11b/g/n |
| NVR/Auxiliary Interface | |
| SATA | 1 |
| Capacity | Up to 6 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| NVR/General | |
| Power Supply | 12 VDC |
| Consumption (without HDD and PoE off) | ≤ 12 W |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 225 × 48 mm (10.4" × 8.9" × 1.9") |
| Weight (without hard disk) | ≤ 1.6 kg (3.5 lb.) |
| Kit | |
| Accessories | Power cable: 4 × IPC power cables, 1 × NVR power cable |
| Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch | |
| HDMI cable: 1 × HDMI cable, 2 m, black | |
| Hard Drive | -1T: Pre-installed 1 TB HDD |
| Certification | FCC, CE |
| Weight (with package) | ≤ 7 kg (15.4 lb.) |

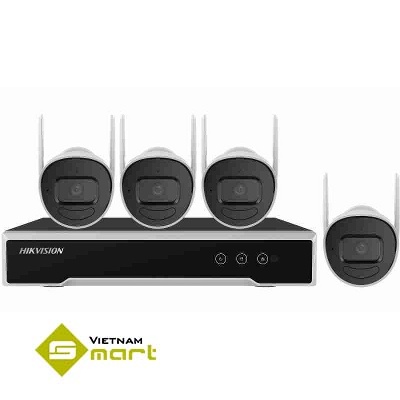

Bộ kit NK44W0H-1T(E) bao gồm 1 đầu ghi hình 4 kênh và 4 camera mạng bullet. Với độ phân giải 4MP và công nghệ nén video H.265, bộ kit này cung cấp hình ảnh sắc nét và rõ ràng, đồng thời tiết kiệm băng thông.
Bộ sản phẩm này cung cấp mọi thứ cần thiết cho các tình huống giám sát nhỏ:
